LPG / Air Blending Systems

LPG Air Blending System

LPG Air Blender (or LPG Air Mixer), is a system that mixes LPG and air in the desired ratio and outputs a substitute gas mixture (SNG, Synthetic Natural Gas) to natural gas.

Click Button to Watch Video


What is an LPG / Air Blender? Where is it used?

LPG / air mixer (or blender) is a system that mixes LPG with air in the desired ratio and gives LPG / air mixture gas (SNG) output. In facilities designed to operate with natural gas, the LPG / air mixer allows the use of LPG as a backup fuel in cases such as natural gas outages and peak shaving needs.

Due to rising natural gas prices, users who want to switch to LPG as their primary energy source can also utilize an LPG / air mixer, without any modification to their existing natural gas-powered equipment.

Another use case is for the companies that want to use natural gas at more affordable intermittent tariffs. While benefiting from the price advantage provided by the intermittent tariff, it is possible not to be affected by these interruptions thanks to the LPG / air mixer system that is automatically activated during possible interruption hours.


Highlights

  • Compliance with PED & ATEX 2014/34/EU
  • Up to 8000 kg/hr. Capacity
  • Compatible with any LPG Composition
  • Plug-and-play installation, easy commissioning
  • Fully automated design with embedded control panel
  • State-of-the-art Robust and Reliable Electromechanical Design
  • Easy Operation, Long Service Life
  • Both high and low pressure applications
  • Outlet feedback system for adjusment of LPG/Air ratio
  • Adjustable LPG/Air mixture ratio according to demand
  • Skid-mounted single unit structure, easy transport and deployment
  • Valve fault detection
  • Daily and monthly data logs
  • No manual adjustment needed, the system automatically adjusts the mixing ratio

Technical Specifications

TYPE OR SERVICE:LPG + Air Blender
MIXED GAS OUTPUT CAPACITY:From 500 to 8000 kg/hr.
DESIGN TEMPERATURE:-20°C to +60°C
GAS INLET DIAMETER:DN 25 to DN150
GAS OUTLET DIAMETER:DN 25 to DN300
FLANGE RATING:PN16 – PN40
PRESSURE INLET (LPG):4 to 6 barg
PRESSURE INLET (AIR):4 to 8 barg
PRESSURE OUTLET:0.1 to 3 barg
DESIGN CODE, COMPLIANCE:EN or ASME Compatible Design
ATEX, PED Compatible
STRUCTURE:Steel Chassis Skid Mounted
SUPPORTED LPG TYPES:Any LPG Composition

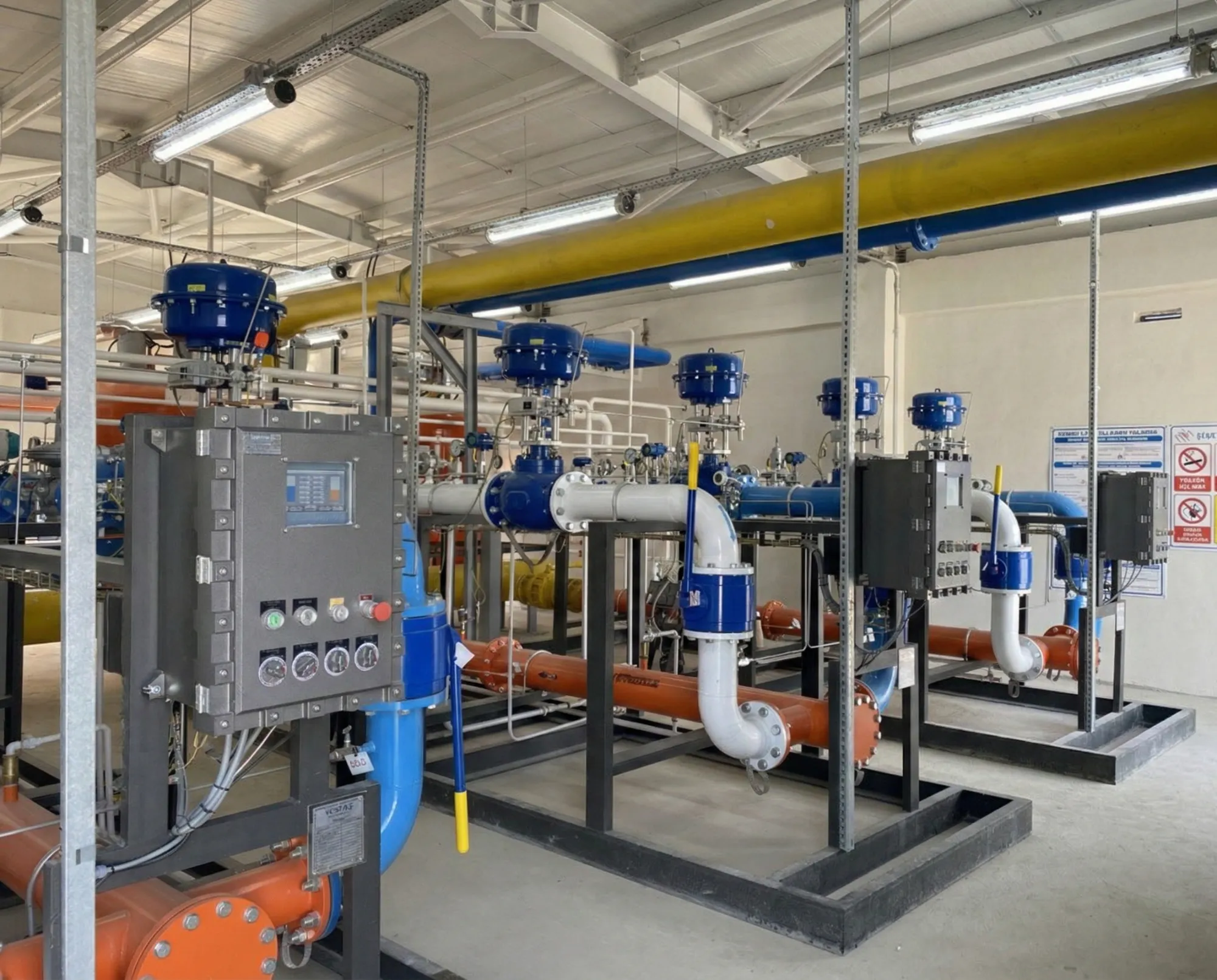

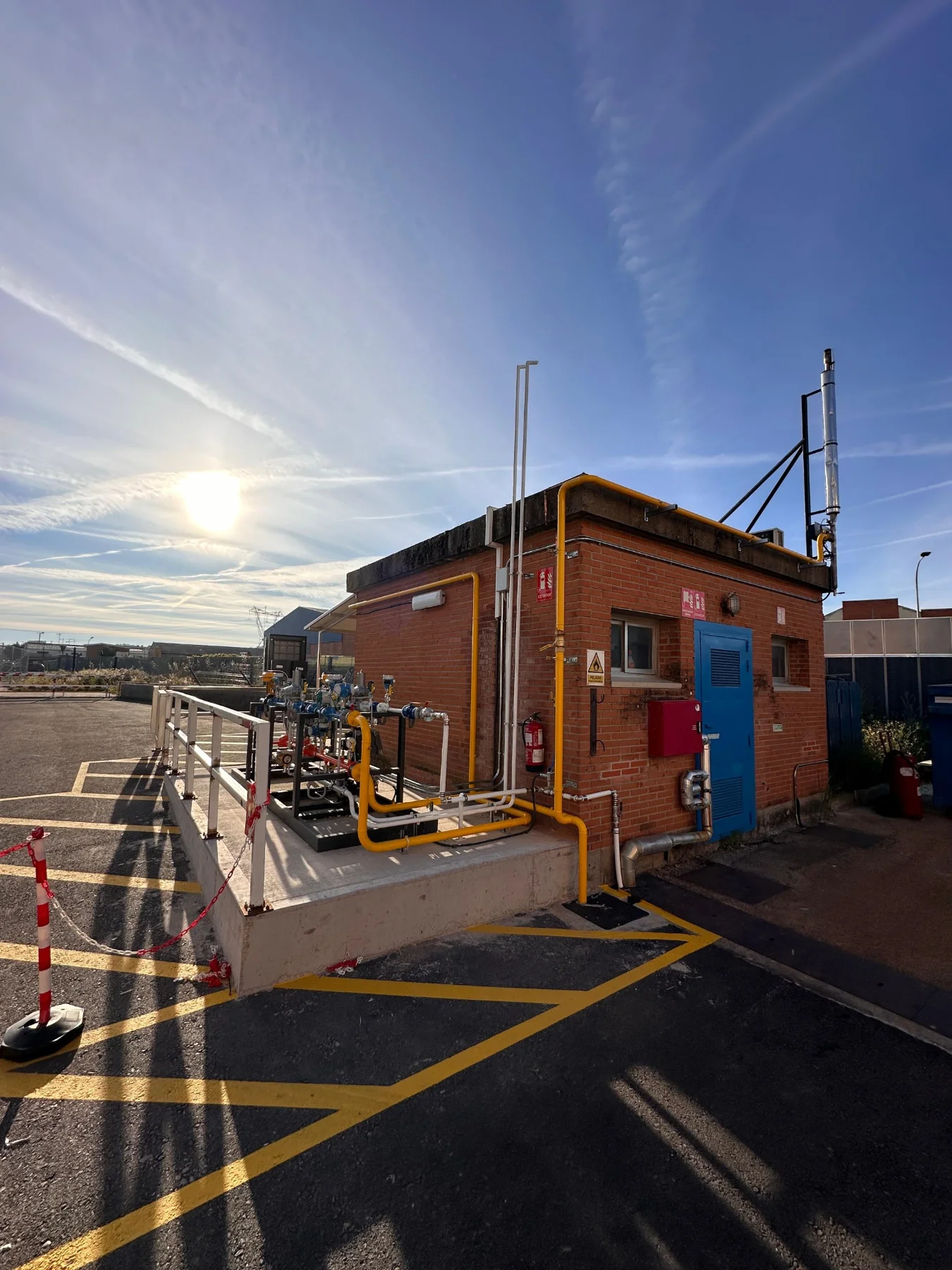

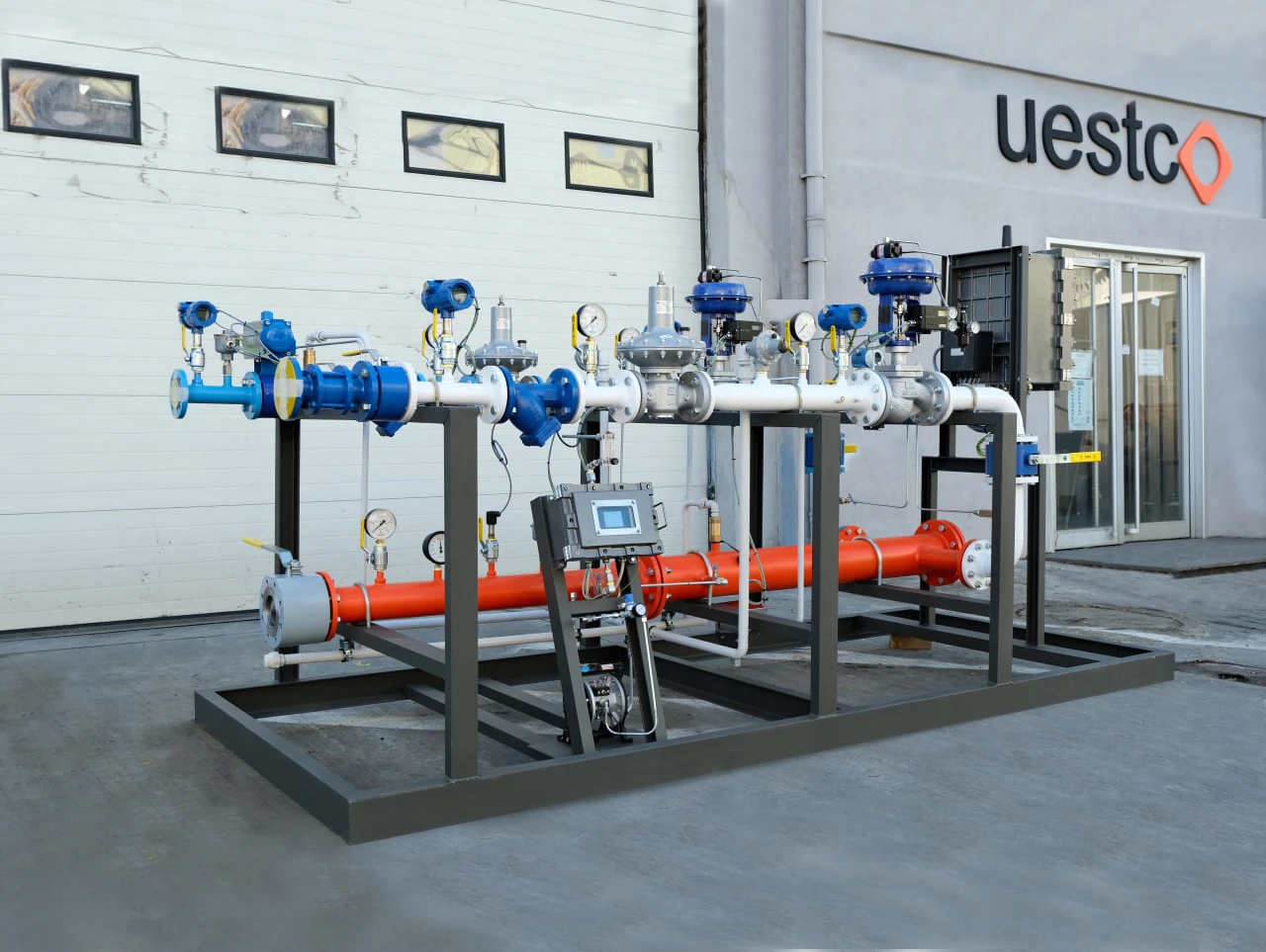

Gallery

Contact Us

UESTCO designs and manufactures LPG Blender Systems with the multidisciplinary talent and experience on combustible gas applications. For more information and inquiries please fill the contact form or contact us by e-mail.
